제품 소개LED 광부 모자 램프

PC 코드 216lum 15000 럭스 LED 광부들 캡 램프 6.6Ah 리튬 이온 배터리

PC 코드 216lum 15000 럭스 LED 광부들 캡 램프 6.6Ah 리튬 이온 배터리

  • PC 코드 216lum 15000 럭스 LED 광부들 캡 램프 6.6Ah 리튬 이온 배터리
  • PC 코드 216lum 15000 럭스 LED 광부들 캡 램프 6.6Ah 리튬 이온 배터리
  • PC 코드 216lum 15000 럭스 LED 광부들 캡 램프 6.6Ah 리튬 이온 배터리
PC 코드 216lum 15000 럭스 LED 광부들 캡 램프 6.6Ah 리튬 이온 배터리
제품 상세 정보:
원래 장소: 중국
브랜드 이름: GREEN LIGHTING
인증: CE,ATEX,Asha
모델 번호: GLT-7A
결제 및 배송 조건:
최소 주문 수량: 1PCS, 시험 주문
가격: Negotiating
포장 세부 사항: 각각 선물 상자 15*10*8cm box,44*44*36cm 각각 통
배달 시간: 샘플 주문 3-7 작업 시간 일, 1 이내에 대량 주문
지불 조건: 전신환, 웨스턴 유니온, 페이팔
공급 능력: 10000 PC / 달
접촉
상세 제품 설명
전지 성능: 6.6Ah Li 이온 건전지 팩 주요 가벼운 현재: 300mA-450mA
주요 빛의 힘: 1.11W-1.67W Illuminous: 144lum-216lum
밝기: 4000lux-15000lux 작업 시간: 16hours-22hours
중량: 420g 방수 급료: IP68
강조하다:

216lum 주도하는 광부들 캡 램프

,

15000개 럭스 LED 광부들 캡 램프

,

6.6Ah 재충전이 가능한 주도하는 전면램프

PC Cord Miner Cap Lamp Super Bright Rechargeable Led Headlamp With 6.6Ah Li-Ion Battery


1.GLT-7 Features for miner cap lamp
a). 1pc CREE main light and 2pcs auxiliary lights can be meet 10000lux to 15000lux brightness.
b). 6.6Ah four pcs of one group 18650 Li-ion battery safety reliable, compact and lightweight.
c). 1pc main light and 6pcs auxiliary lights, power of main led are 1.6W, current is 450mA.
d). Explosion-proof and strong impact resistance, waterproof, current shockproof, and impact-proof.
e). Safety: EXia IIC4(zone1 and CE certified, these lamps can be used in any other hazardous locations.
f). Charging protection: anti-overcharging, current control, short circuit protection, and anti-overheating.



2. Specifications of GLT-7 wired mining caplamp :

Item Value Value Value
Model GLT-7A  GLT-7B  GLT-7C
Light source

One main light

six auxiliary lights

One main light

six auxiliary lights

One main light

two auxiliary lights

Battery capacity 6.6Ah Li-ion battery pack 6.6Ah Li-ion battery pack 6.6Ah Li-ion battery pack
Rated Voltage 3.7V 3.7V 3.7V
Main light current 300mA 450mA 450mA
Power of main light 1.11W 1.67W 1.67W
Illuminous 144lum 216lum 216lum
Brightness 4000lux 10000lux 15000lux
The life span of main light 100000hrs 100000hrs 100000hrs
Battery cycles 1000cycles 1000cycles 1000cycles
Working time 22hrs 16hrs 16hrs
Weight 420g 420g 420g
Water-proof grade IP68 IP68 IP68

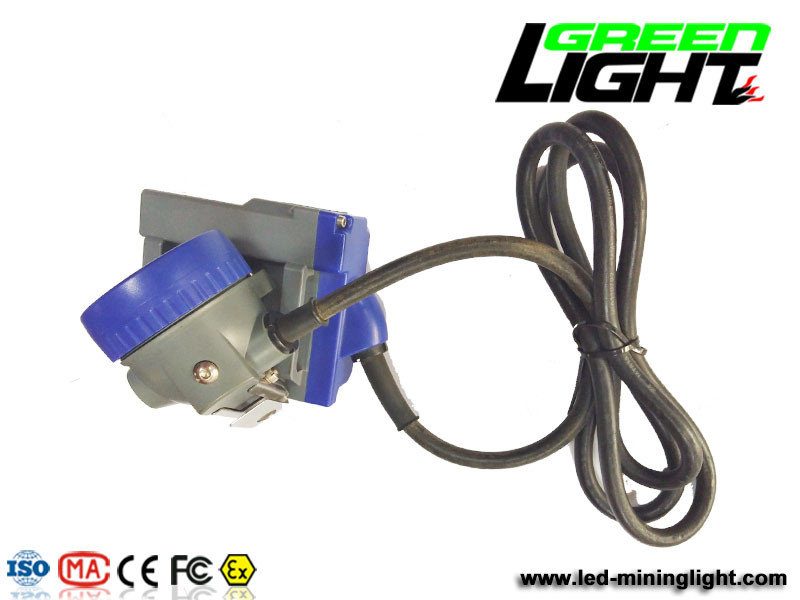

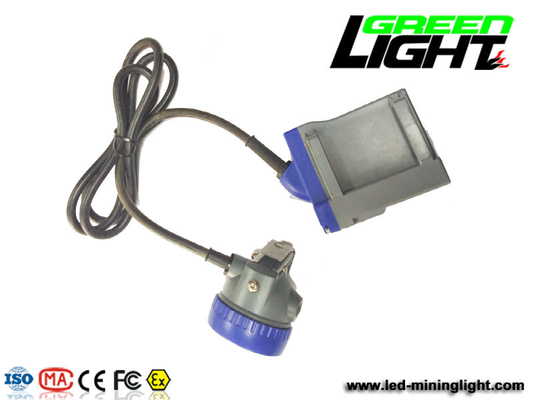

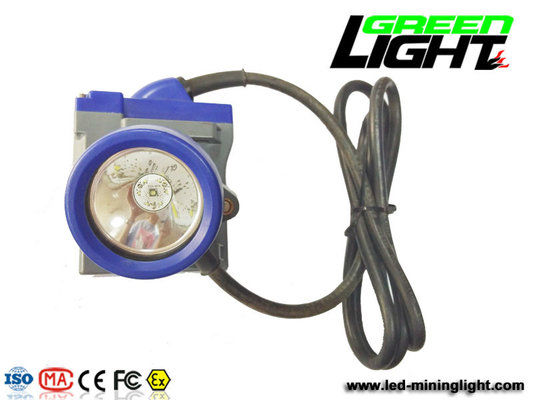

3. LED miner cap light image





Product name:
mining lamp, miner's lamp, led lamp, headlamp, lamp, led mining safety lamp, led head lamp, safety lamp, led miner's lamp, mining safety lamp, miner's safety lamp, working lamp, head lamp, mining equipment led miner safety lamp, miner safety lamp, miner working lamp, led safety lamp, headlight miner light, mine lamp, mining lamp, mining machine portable lamp, industrial lighting, mining light, miner lamp, mining explosion-proof lamp, miner cap lamp mine lamp.





4. Traditional charging way

Connect the single charger to the power supply or switch on the charger rack, the indicator light of the charger turns green.

Connect the cap lamp with the charger. Fix the brass pin (cathode)of the charger into the hole of the cap lamp clip.

Rotate the headlamp 180 degrees clockwise, make sure the anode touch of the headlamp is closely connected to the connected metal base (anode). Then the indicator light turns red, which means the lamp is being charged.

When it’s charged by 2A single portable charger or the intelligent charger racks, the indicator light of the charger keeps flashing from green to red, it meaning the battery has been charged at least 90%.

The cap lamp can work more than 13h continuously if charging is stopped at this moment. If the indicator light of the charger flashes green only, then the battery has been fully charged.

Rotate the headlamp 180 degrees anti-clockwise; take it away from the charger.


5. Safety Attention
a) Please Device do not shoot at the eyes directly since the strong light will hurt the eyes.
b) Before each use, check the functionality of the device.
c) Please do not charge the lamp underground.
d) Please keep the lamp away from fire sources.
e) Please don't disassemble the lamp or repair the battery parts by yourself.
f) Please don't crash and strike the lamp.
g)Don't open or repair the device without using appropriate electrostatic protection.



GREEN LIGHTING advantage:

GREEN LIGHTING assumes to offer the most competitive price with good quality and punctual delivery to satisfy our valued customers.

Reasonable price, reputation innovation, high-quality service, strict quality control processing make us approved by global customers.

Top-quality material:
1) CREE led: advanced Cree led
2) Germany Bayer PC material makes the lamps durable, feel good
3) Panasonic or ATL battery: imported from Japan, it is applied in Apple notebook

R & D:
1) GREEN LIGHTING has built a team of 10 qualified engineers to service all the customers with product development, innovation, solution, and technical assistant.
2) Every year we invest 10% annual turnover in our R&D.



GREEN LIGHTING provides one year warranty period. At the same time, we can also provide technical support all the time whenever customers need it.
